Φ3mm DIP LED Diode-Zhongshan J.M.X Electronics Co., Ltd.

Φ3mm DIP LED Diode

1．We specialize in manufacturing medium and high-end Light Emitting Diode(LED).

2．We can customize the color temperature of the LED as your requirements.

3．We maintain consistent color temperature in our LED.

4．Our LED can adopt large chip, low brightness decay phosphor.

5．LED Brightness decay < 5% after 10,000 hours

6．LED Brightness > 7 Lumen.

7．LED warranty: 2 - 5 years.

8．LED Failure Rate < 1/1,000,000

9．Regular Lead Time = 10 days


Φ3mm DIP LED Diode

Low Current Drive
Low Power Dissipation
High Luminous Intensity.
High Temperature Resistance Epoxy Resin.
Good Reliability and Long Life.
Compliant with UL, RoHS, EN62471, SVHC.
Application: LED String Lights, LED Rope Lights, LED Bulb etc.

DETAILED DESCRIPTION

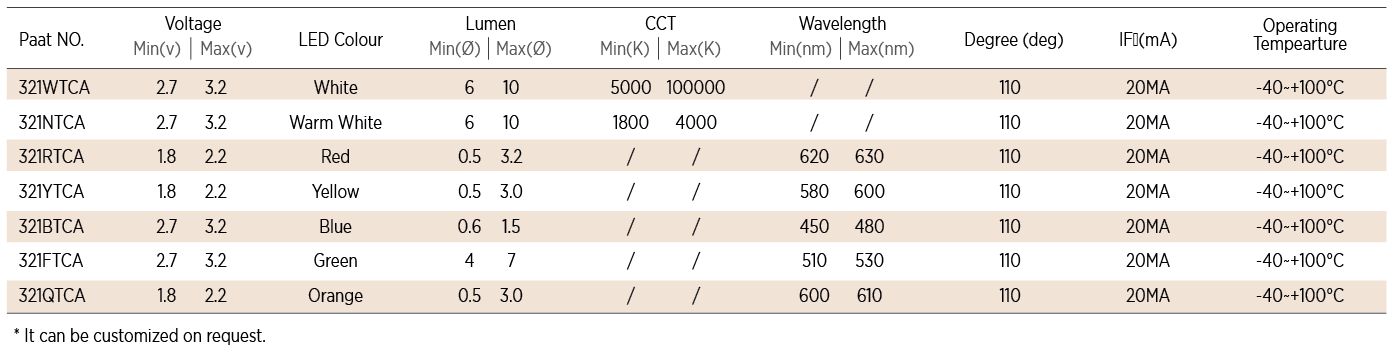

Essential details

LED Color:	White / Warm White / Red / Green / Blue / Yellow / Orange / Pink / Purple / RGBY(4-Color Arrangement) / Customize
Mounting Type:	Welding	Type	3mm DIP LED Diode
Forward Voltage:	1.8V~2.2V / 2.7V~3.2V	Luminous Efficiency(lm/w)	＞7lm/W
Forward Current:	20mA	Reverse Voltage:	5V
MAX Current:	150mA	Reverse Current:	1uA
Power:	0.2W-0.5W	Total Capacitance:	10-50PF
Shape:	Round, Straw hat, Flat top, Square, Tower etc.	Viewing Angle(°):	110°
Chip size:	818mil,1024mil 14*28mil, Customize	Lifespan (hours):	50000 hours
Leg distance:	2.28mm, 2.54mm	Lens Type:	Water clear / Light blue / Dark blue / Milky white / Diffused
Chip Material:	AlGaInP, Customize	Gold wire:	99.99% pure gold wire.
Luminous Intensity:	8000mcd-10000mcd	Optical Attenuation(%):	1% after 5,000 hours
Power Dissipation:	60	Warranty:	2 - 5 years
Operating Temperature(℃):	-40~100℃	Chip Brand	Sanan / Epistar / Customize
Customize:	YES	Certificate:	UL, RoHS, EN62471, SVHC

Supply Ability
Supply Ability: 500000pcs per month

Packaging & Delivery
Packaging Details:1000pcs/ESD Bag

Product Description

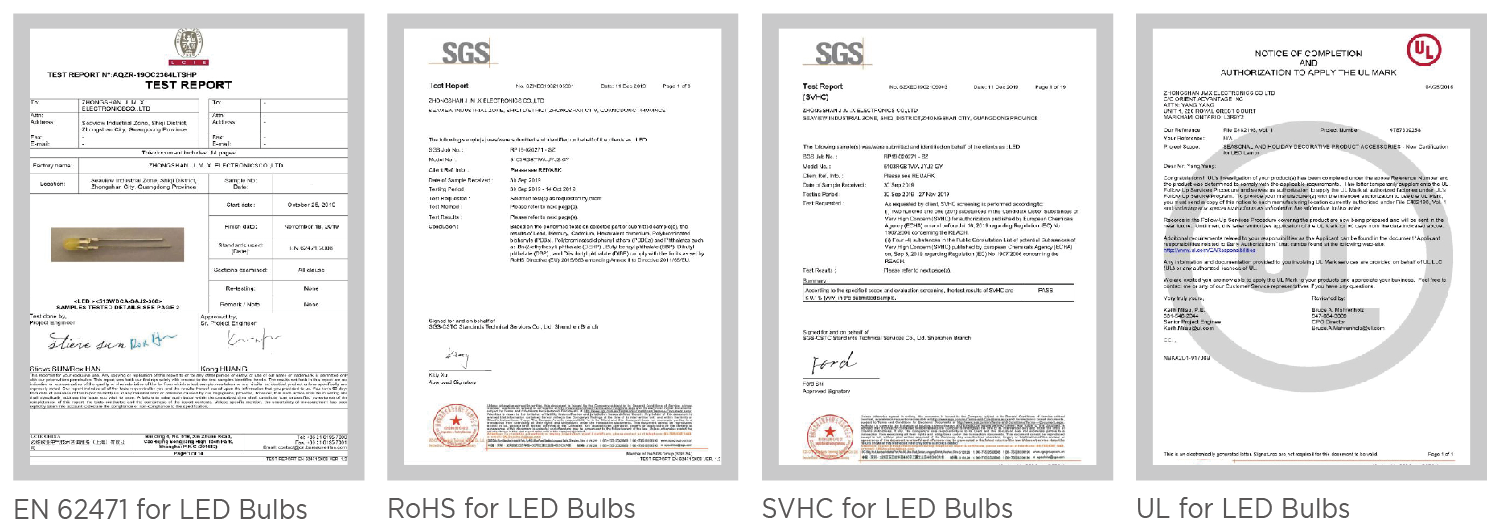

Product Certificate

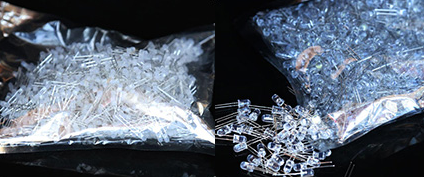

Packing Details

Shipping Logistics

FAQ
Q1: Are you a factory?
A: Yes, we are a factory dedicated to the production, sales and research of high-quality LED and LED decorative lights in Zhongshan, Guangdong, China.
Q2: Could you please send me a free sample so that I can see and check its quality?
A: Certainly. We can provide free samples for low-value items. However, clients are responsible for paying the shipping freight. Samples with high value may incur a fee.
Q3: Do you accept OEM and ODM orders?
A: Yes, we are capable of fulfilling your OEM and ODM orders. We have a large quantity of LED products in stock for standard models. For special models, customization may take some time.
Q4: How do you ship the goods and how long does it take to arrive?
A: We usually ship through DHL, UPS, or FedEx, which typically takes 3-5 days for delivery. Airline and sea shipping options are also available.
Q5: How do we proceed with an order for LED lights?
A: Firstly, let us know your requirements or application.
Secondly, we will provide a quotation based on your requirements or offer suggestions.
Thirdly, the customer confirms the samples and places a deposit for the formal order.
Lastly, we proceed with production.
